Introduction to MaxMin

The Max-Min Diversity Problem (MMDP) asks: given a fixed set of N candidate items and a distance between every pair, choose m items so that the closest pair in the selection is as far apart as possible. The objective — often written T_k — is the minimum pairwise distance within the chosen subset; a larger T_k means a more spread-out, representative selection.

This problem arises naturally wherever you want a diverse sample from a fixed pool: selecting field-survey sites to cover a landscape, picking biological specimens for sequencing that span the available genetic diversity, or choosing a representative subset of protein structures from a database.

Installation

install.packages("MaxMin")

For the exact solver, also install highs:

install.packages("highs")

Quick start

eurodist is a built-in R dist object containing road distances (km) between 21 European cities.

data(eurodist)

# Select 4 maximally dispersed cities
idx <- Gonzalez(eurodist, n = 4L)

as.matrix(eurodist)[idx, idx]
#>           Lisbon Athens Stockholm Milan
#> Lisbon         0   4532      3231  2250
#> Athens      4532      0      3927  2282
#> Stockholm   3231   3927         0  2187
#> Milan       2250   2282      2187     0

labels(eurodist)[idx]
#> [1] "Lisbon"    "Athens"    "Stockholm" "Milan"
TkScore(eurodist, idx)
#> [1] 2187

Gonzalez() returned the indices of the four cities whose nearest-neighbour distance within the selection is largest. TkScore() reports that value explicitly.

Methods at a glance

MaxMin provides four solvers and two utilities:

Function	Quality	Speed	Stochastic?
`Gonzalez()`	Good (2-approximation)	Very fast	No
`DropAddTS()`	High (≈ 99 % optimal)	Fast	No
`GraspPR()`	Highest	Moderate	Yes (`seed =`)
`ExactMaxMin()`	Optimal (NP-hard)	Slow	No
`PolishSelection()`	Post-processing only	Very fast	No
`TkScore()`	Scoring only	Instant	No

The rest of this vignette walks through each in turn.

Gonzalez: fast greedy selection

The Gonzalez (1985) algorithm builds the selection greedily: start from a seed point, then repeatedly add whichever unselected point is farthest from the current selection. This greedy rule guarantees a 2-approximation to the optimal T_k and runs in O(N · m) time.

By default seed = c("diameter", "anti_medoid", "rowsum", "rownorm"): all four peripheral seeding strategies run and whichever produced the highest T_k is returned. Pass a shorter character vector to use a subset, or a single name for one strategy.

idx_ens <- Gonzalez(eurodist, n = 6L)   # default: four-anchor ensemble

# Which seeding strategy won?
attr(idx_ens, "winning_strategy")
#> [1] "diameter"    "anti_medoid" "rowsum"      "rownorm"

You can also request a specific seeding strategy or a custom ensemble subset:

idx_diam <- Gonzalez(eurodist, n = 6L, seed = "diameter")
TkScore(eurodist, idx_diam)
#> [1] 1014

idx_anti <- Gonzalez(eurodist, n = 6L, seed = "anti_medoid")
TkScore(eurodist, idx_anti)
#> [1] 1014

When only pairwise distances between objects are known — there are no coordinates to work from — and computing or storing all N×N distances at once would be too expensive (e.g. large phylogenetic trees, where each tree-to-tree distance requires its own calculation), pass Gonzalez() a function in place of the distance matrix. The function takes one index i and returns the distances from object i to all N objects — one column of the matrix. Gonzalez calls it only n times, so the full N×N matrix is never built; you must supply N (the number of objects), since it cannot be read off a function.

dm <- as.matrix(eurodist)
col_of <- function(i) dm[, i]       # one column on demand
Gonzalez(col_of, n = 6L, N = nrow(dm), seed = 1L)
#> [1]  1 12 20 16  5  2

(Here the column simply indexes a matrix we already have, to keep the example self-contained; the point is that col_of could instead compute each column from trees, sequences, or any metric with no coordinate embedding.) Only an integer seed (a fixed start index) or the default peripheral seed is available on this path — the richer ensemble anchors need the whole matrix.

DropAdd tabu search

The DropAdd heuristic (Porumbel, Hao & Glover 2011) refines an initial selection by alternating drop and add moves guided by a FIFO tabu list that prevents short cycles. It is fully deterministic and reproducible, and typically reaches ≈ 99 % of the optimal T_k.

res_da <- DropAddTS(eurodist, m = 6L, max_no_improve = 500L)

labels(eurodist)[res_da$indices]
#> [1] "Athens"    "Barcelona" "Cherbourg" "Lisbon"    "Stockholm" "Vienna"
res_da$objective     # T_k achieved
#> [1] 1294
res_da$iters         # iterations completed
#> [1] 516
res_da$time_s        # wall-clock seconds
#> [1] 0.000254631

max_no_improve is the main stopping knob: the algorithm terminates after this many consecutive iterations without an improvement in T_k. For coordinate data where N is large enough to make the distance matrix infeasible (roughly N > 46 000), use DropAddTSPoints(), which accepts a coordinate matrix directly.

GRASP with path relinking

GRASP + path relinking (Resende et al. 2010) combines a randomised greedy construction phase with extended local search and then refines an elite set of good solutions by interpolating between elite-pair trajectories (path relinking). It achieves the highest T_k of the three heuristics, at a proportionally higher cost. Because the construction phase is stochastic, always set seed for reproducibility:

res_gr <- GraspPR(eurodist, m = 6L, max_no_improve = 50L, seed = 42L)

labels(eurodist)[res_gr$indices]
#> [1] "Athens"    "Barcelona" "Calais"    "Lisbon"    "Stockholm" "Vienna"
res_gr$objective
#> [1] 1305
res_gr$pr_calls   # path-relinking calls performed
#> [1] 90

max_no_improve controls how many consecutive non-improving GRASP iterations trigger termination; time_budget_s is available as an absolute time cap for interactive or batch use.

Comparing methods on a simulated example

To see how the methods relate visually, we generate 50 points in two dimensions and select m = 8 from each.

set.seed(42)
pts <- matrix(rnorm(100), ncol = 2)   # 50 points, 2 dimensions
d50 <- dist(pts)
m   <- 8L

idx_gonz <- Gonzalez(d50, n = m)
res_da50 <- DropAddTS(d50, m = m, max_no_improve = 500L)
res_gr50 <- GraspPR(d50, m = m, max_no_improve = 50L, seed = 42L)

Even a small difference in T_k can correspond to a meaningfully more dispersed selection.

scores <- c(
  Gonzalez  = TkScore(d50, idx_gonz),
  DropAddTS = res_da50$objective,
  GraspPR   = res_gr50$objective
)
round(scores, 3)
#>  Gonzalez DropAddTS   GraspPR
#>     1.416     1.428     1.428

Plotting the selections against the point cloud makes the differences concrete. When two methods select the same index, their symbols overlap; the T_k table above captures the quality distinction even when the visual overlap is high.

methods <- list(
  Gonzalez  = idx_gonz,
  DropAddTS = res_da50$indices,
  GraspPR   = res_gr50$indices
)
cols <- c(Gonzalez = "#E41A1C", DropAddTS = "#377EB8", GraspPR = "#4DAF4A")
pchs <- c(Gonzalez = 24L, DropAddTS = 21L, GraspPR = 22L)
# Small per-method shift so coincident selections remain distinguishable
dx   <- c(Gonzalez = 0, DropAddTS =  0.04, GraspPR = -0.04)
dy   <- c(Gonzalez = 0, DropAddTS = -0.04, GraspPR =  0.04)

plot(pts, pch = 1L, col = "grey75", asp = 1L,
     xlab = "x", ylab = "y",
     main = "MaxMin method comparison")

for (nm in names(methods)) {
  sel <- methods[[nm]]
  points(
    pts[sel, 1L] + dx[nm],
    pts[sel, 2L] + dy[nm],
    pch = pchs[nm], col = cols[nm], bg = cols[nm], cex = 1.6
  )
}

legend("topright",
       legend = paste0(names(methods), "  (Tₖ = ", round(scores, 3), ")"),
       pch = pchs, col = cols, pt.bg = cols, pt.cex = 1.4, bty = "n")

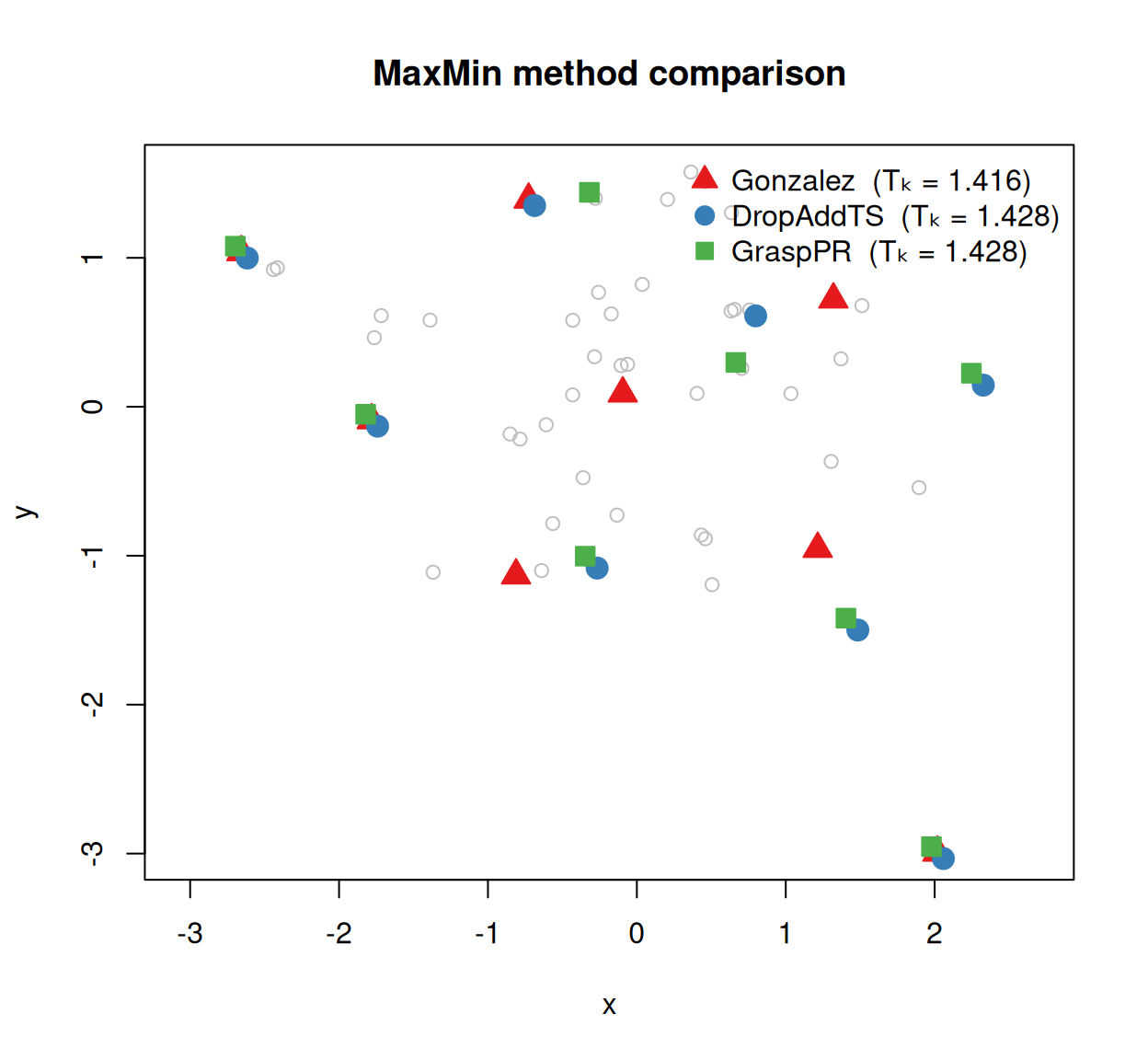

Selections returned by each method on 50 random 2-D points (m = 8). Coloured symbols mark selected points; grey circles are the full candidate set. A small jitter separates symbols at shared indices.

Exact solution

For small instances (roughly N ≤ 25–30), ExactMaxMin() solves the problem to proven optimality via a node-packing integer programme (Sayyady & Fathi 2016), using the highs solver.

set.seed(1L)
pts30 <- matrix(rnorm(60L), ncol = 2L)
d30   <- dist(pts30)

res_ex <- ExactMaxMin(d30, m = 6L, time_budget_s = 30L)

res_ex$proven      # TRUE  ⟹  objective is the global optimum
#> [1] TRUE
res_ex$objective
#> [1] 1.616311

# Compare to the greedy heuristic on the same instance
res_gonz30 <- Gonzalez(d30, n = 6L)
c(exact    = res_ex$objective,
  Gonzalez = TkScore(d30, res_gonz30))
#>    exact Gonzalez
#> 1.616311 1.616311

$proven = TRUE certifies that no selection can achieve a higher T_k. ExactMaxMin() is NP-hard; instances with more than ~30 candidates require a time budget or should be tackled with the heuristics above.

Scoring and polish

`TkScore()`

TkScore() computes the T_k objective for any index set. It accepts a dist object, a square distance matrix, or a coordinate matrix via the points argument:

TkScore(d50, idx_gonz)                               # from dist
#> [1] 1.416314
TkScore(as.matrix(d50), idx_gonz)                    # from square matrix
#> [1] 1.416314
TkScore(points = pts, idx = idx_gonz)                # from coordinates
#> [1] 1.416314

`PolishSelection()`

PolishSelection() applies a 1-swap local search anchored on the critical edge — the pair realising T_k — and is a fast post-processor for any greedy selector. Applying it to a single-seed (weaker) Gonzalez result often recovers a few extra units of T_k:

idx_raw      <- Gonzalez(d50, n = m, seed = "first")   # single, weaker seed
TkScore(d50, idx_raw)
#> [1] 1.322782

idx_polished <- PolishSelection(d50, idx_raw)
TkScore(d50, idx_polished)
#> [1] 1.416314

attr(idx_polished, "swaps")   # number of improving swaps applied
#> [1] 1

When to use which method

Scenario	Recommended
Speed matters most, N up to a few thousand	`Gonzalez()` (ensemble default)
Deterministic, reproducible refinement	`DropAddTS()`
Best quality, set `seed` for reproducibility	`GraspPR(seed = ...)`
N > 46 000 (distance matrix infeasible)	`DropAddTSPoints()` or `Gonzalez(points = ...)`
Arbitrary metric with no coordinate embedding	`Gonzalez(<column function>, N = ...)`
Proven optimum, N ≤ ~ 25–30, highs installed	`ExactMaxMin()`
Post-process any selection cheaply	`PolishSelection()`

The heuristics are complementary: Gonzalez() is O(N · m) and deterministic — an instant first result. DropAddTS() is deterministic and reproducible (no RNG), typically reaching ≈ 99 % of optimal; the seed parameter governs only the RNG used for tie-breaking, not the algorithm itself. GraspPR() is stochastic and usually edges out DropAddTS() on T_k, but requires a seed for reproducibility. For any of these, PolishSelection() can squeeze out further improvement at negligible cost.

The CRAN package maximin constructs continuous space-filling designs by generating new points.
