Generate pectinate, balanced or random trees

RandomTree(), PectinateTree(), BalancedTree() and StarTree() generate trees with the specified shapes and leaf labels.

Usage

RandomTree(tips, root = FALSE, nodes)

YuleTree(tips, addInTurn = FALSE, root = TRUE)

PectinateTree(tips)

BalancedTree(tips)

StarTree(tips)

Arguments

tips

An integer specifying the number of tips, or a character vector naming the tips, or any other object from which TipLabels() can extract leaf labels.

root

Character or integer specifying tip to use as root; or TRUE to root the tree on a random edge; or FALSE to return an unrooted tree.

nodes

Number of nodes to generate. The default and maximum, tips - 1, generates a binary tree; setting a lower value will induce polytomies.

addInTurn

Logical specifying whether to add leaves in the order of tips. If FALSE, leaves will be added in a random order.

Value

Each function returns an unweighted binary tree of class phylo with the specified leaf labels. Trees are rooted unless root = FALSE.

RandomTree() returns a topology drawn at random from the uniform distribution (i.e. each binary tree is drawn with equal probability). Trees are generated by inserting each tip in term at a randomly selected edge in the tree. Random numbers are generated using a Mersenne Twister. If root = FALSE, the tree will be unrooted, with the first tip in a basal position. Otherwise, the tree will be rooted on root.

YuleTree() returns a topology generated by the Yule process (Steel and McKenzie 2001) , i.e. adding leaves in turn adjacent to a randomly-chosen existing leaf.

PectinateTree() returns a pectinate (caterpillar) tree.

BalancedTree() returns a balanced (symmetrical) tree, in preorder.

StarTree() returns a completely unresolved (star) tree.

References

Steel MA, McKenzie A (2001). “Properties of Phylogenetic Trees Generated by Yule-type Speciation Models.” Mathematical Biosciences, 170(1), 91–112. doi:10.1016/S0025-5564(00)00061-4 . ()

See also

Other tree generation functions: ConstrainedNJ(), NJTree(), TreeNumber, TrivialTree

Author

Martin R. Smith (martin.smith@durham.ac.uk)

Examples

RandomTree(LETTERS[1:10])
#>
#> Phylogenetic tree with 10 tips and 8 internal nodes.
#>
#> Tip labels:
#>   A, B, C, D, E, F, ...
#>
#> Unrooted; no branch lengths.

data("Lobo")
RandomTree(Lobo.phy)
#>
#> Phylogenetic tree with 48 tips and 46 internal nodes.
#>
#> Tip labels:
#>   Tubiluchus_Priapulida, Cricocosmia, Aysheaia, Siberion, Onychodictyon_ferox, Onychodictyon_gracilis, ...
#>
#> Unrooted; no branch lengths.

YuleTree(LETTERS[1:10])
#>
#> Phylogenetic tree with 10 tips and 9 internal nodes.
#>
#> Tip labels:
#>   I, G, F, A, D, J, ...
#>
#> Rooted; no branch lengths.

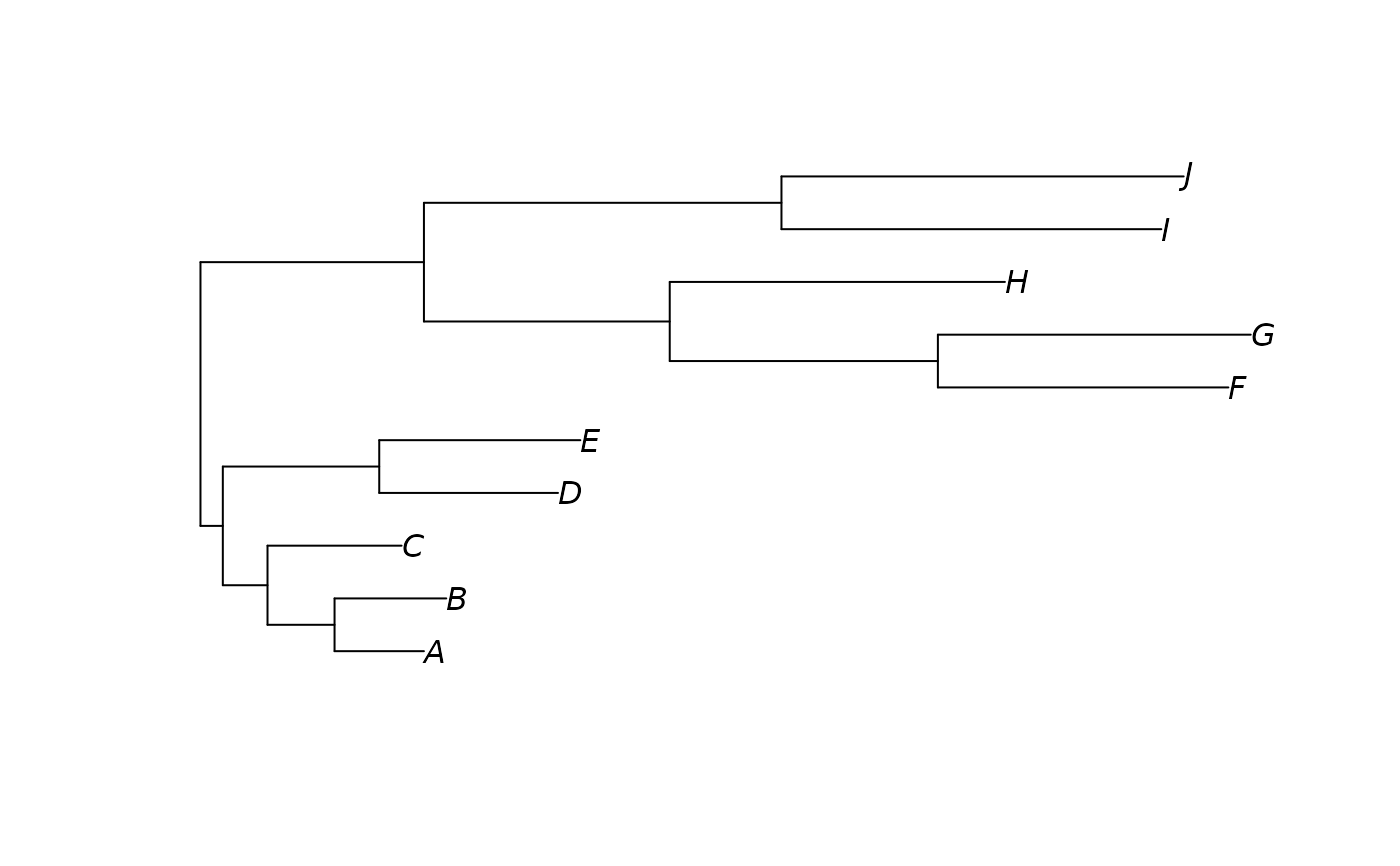

plot(PectinateTree(LETTERS[1:10]))


plot(BalancedTree(LETTERS[1:10]))

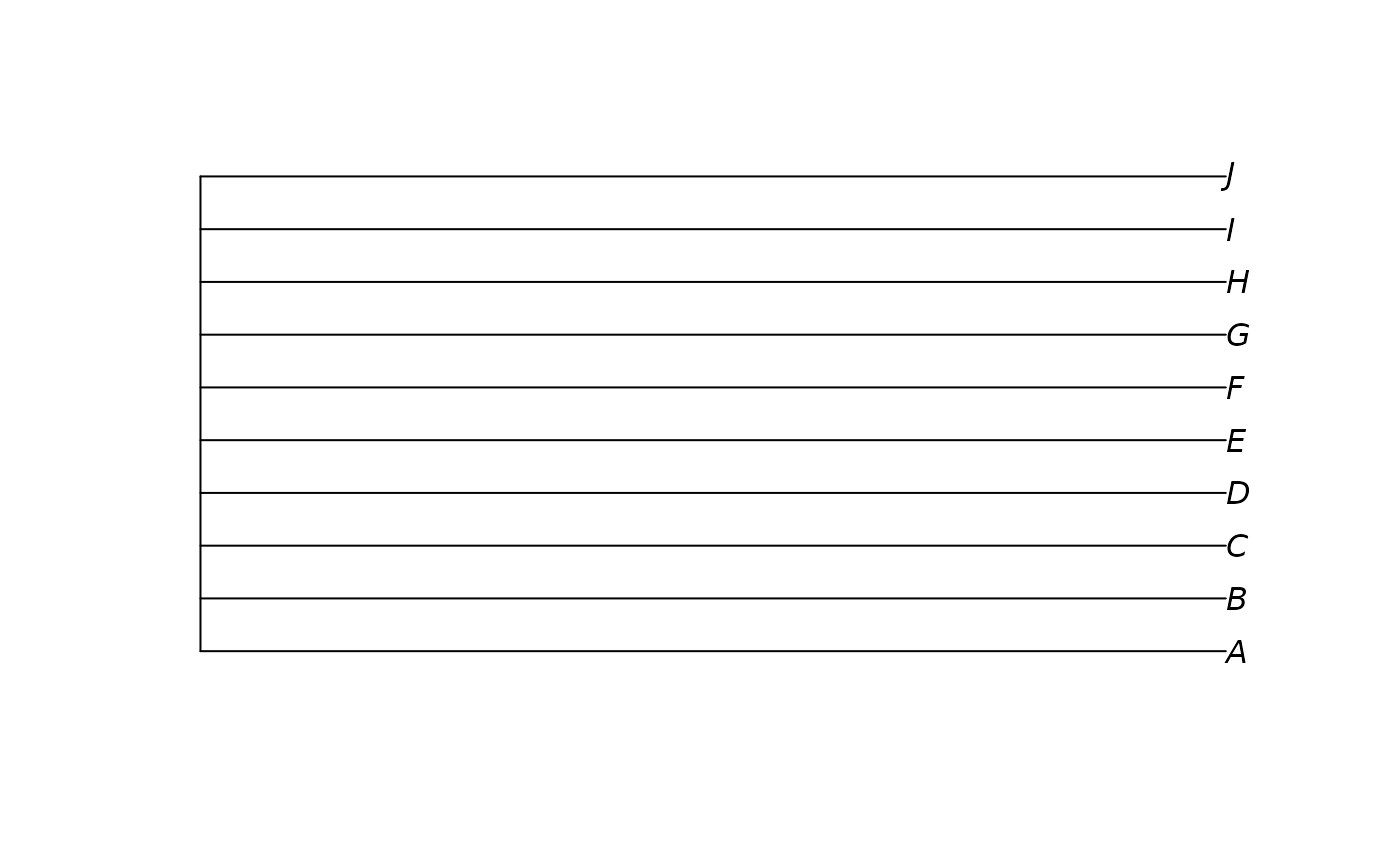

plot(StarTree(LETTERS[1:10]))
